API

Authorization

You could enable and specialize a string here. The string would pass to the middleware. When it enables , this route would add the auth middleware which runs before the action. The auth middleware could be set in Settings API Section

Request

• Params

  Input in url like /:key will add a param key field

• Query

  Could add string number int and it's array field

• Body

  Should input Field Name first , then choose a Data Type

Action

Just think your code is in an Express js Route.

router.method("/url", async (req, res) => {
  /** your code comes here ... */
});

Obviously, you could use req to get the Request data ,and use res to send the Response There two extra functions addon to res,which could be set in Settings API Section

• res.success() to send a success response
• res.error() to send a fail response

There are also many Functions and npm libs which can be used here.

• Inner Function : auto (same as schema chapter)
• Inner Function : action (async function)

    /** SchemaName should replaced with real schema name */
    action.SchemaName.read()   //read the schema data file
    action.SchemaName.save(data:any) //save the schema data file

    /** array type data only */
    action.SchemaName.create(data:any) // add an item append to schema data array
    action.SchemaName.update(data:any) //update an item by primary field
    action.SchemaName.del(data:any) //delete an item by primary field
    action.SchemaName.detail(data:any) //get an item by primary field
    action.SchemaName.list(params:{page?: number; limit?: number} ) //get a paged list of schema data array

    action.SchemaName.batchCreate(data:any[]) // batch add items
    action.SchemaName.batchUpdate(data:any[]) // batch update items
    action.SchemaName.batchDel(data:any[]) // batch del items

• Third Party Npm Lib

  Lib Name	Lib Version	Reference Name
  @faker-js/faker	^8.3.1	faker , fakerZH_CN , fakerFR ...
  dayjs	^1.11.11	dayjs
  mockjs	^1.1.0	mockjs
  jsonwebtoken	^9.0.2	jwt
  svg-captcha	^1.4.0	svgCaptcha

  //create captcha
  const captcha = svgCaptcha.create({
    // ignoreChars:'abcdefghijklmnopqrstuvwxyz',
    charPreset: "0123456789",
    size: 4,
    noise: 3,
    color: true,
    background: "#f5f5f5",
  });
  res.json({ img: captcha.data });

Response

At present ,it's only show what the response data structure is .

File Upload

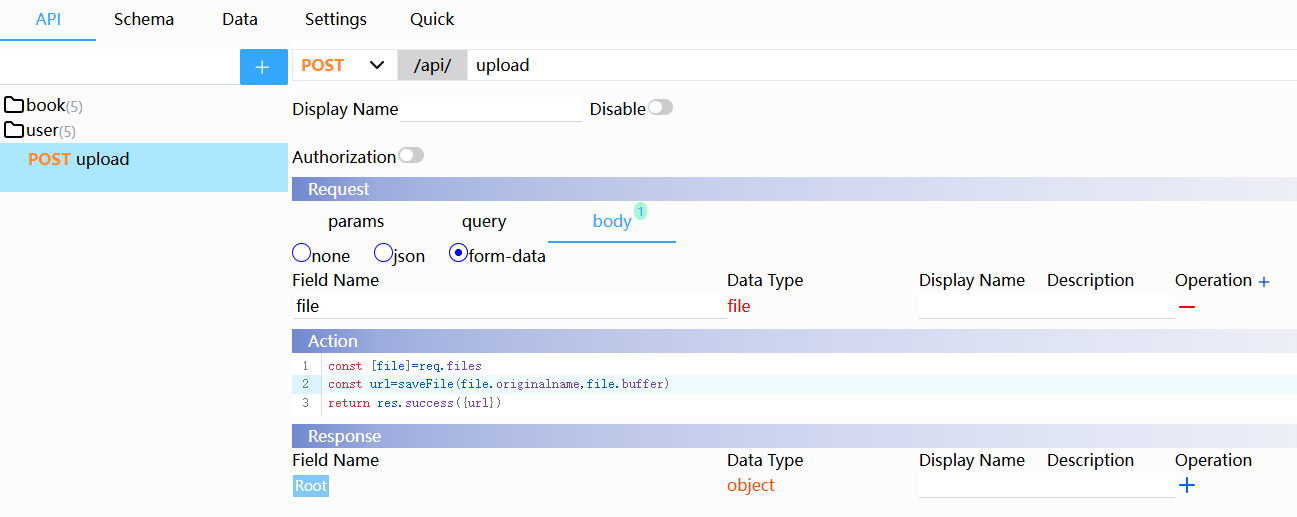

You can upload file like the image below.
